Microwave Device

We supply  brands of high-end microwave components, coaxial connectors, adapters and microwave millimeter wave components.

RF amplifier (SSPA), RF switch, Coupler, power divider, attenuator, phase shifter, filter, signal source, direct separator, TR assembly, conversion assembly, coaxial limiter, RF cable, connector...

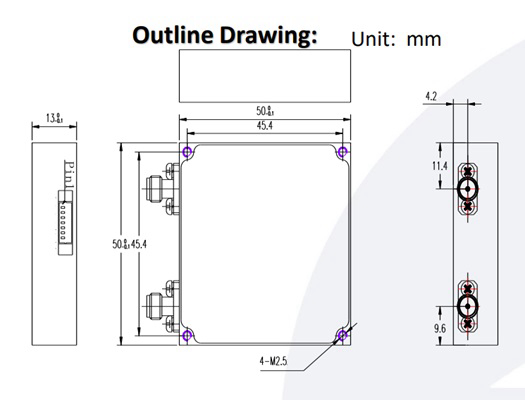

Sample：50MHz-22.6 GHz Frequency synthesizer

Electrical Characteristics:

Input Frequency: 10050MHz

Input Power: 7±3 (dBm)

Input Reference Phase Noise: -155dBc/Hz@1kHz

Impedance: 50 Ω

Output Frequency: 50MHz-22600MHz

Frequency Step: 0.1Hz

Switching time: ≤ 200 us

Output Power: 4±5dBm

Spurious: ≤ -70dBc (Typ)  ≤ -65dBc (Max)

Phase Noise: dBc/Hz@1MHz

@1GHz ≤ -135     @5GHz ≤ -122

@10GHz ≤ -116    @22.6GHz ≤ -110
