Multi-plane phased array radar

This radar has the ability to search, track and locate low-speed small targets such as small unmanned aerial vehicles; it has the ability of networking detection; it has unattended and remote modes.

The tile integrated phased array antenna integrates the array, feed/sum and difference network, frequency conversion unit and wave control, reduces the insertion loss of high-frequency signal transmission, reduces the line connection between components, and realizes the flat integrated array structure with highly integrated functions and components.

Each array face consists of four sub-arrays, with antennas and TR chips in each sub-array interconnected through integrated high-frequency boards. The high-frequency boards also integrate power networks and wave control circuits.

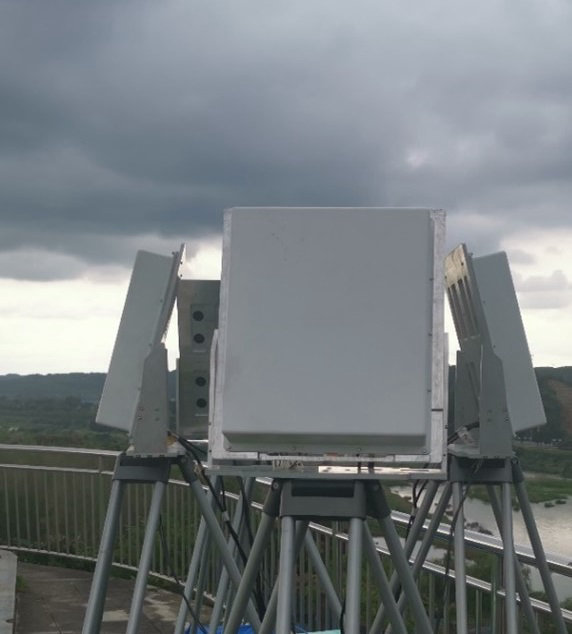

Radar deployment methods: flexible tripod or fixed pole-hugging.

Performance indicators

1. Detection target: small UAV and other low-speed small targets (typical RCS is about 0.01 m2);

2. Operating range: ≥ 2.5km (RCS = 0.01 m2);

3. Coverage airspace (area array electric scanning): 360 ° (azimuth); at 30 ° (elevation);

4. Target capacity: ≥ 100m;

5. Operating temperature: -40℃~+55℃
