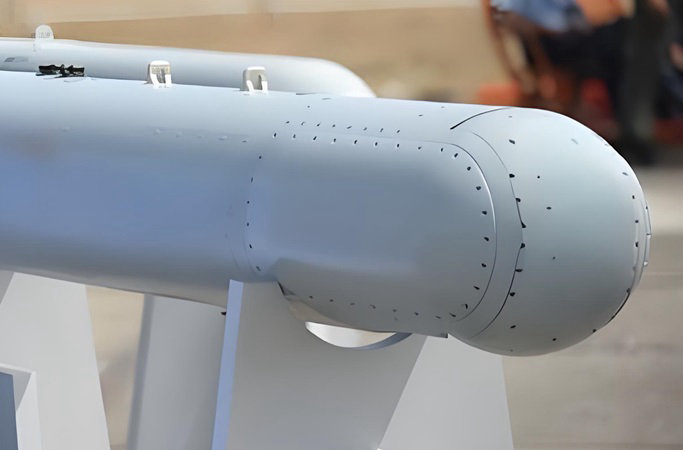

Electro-optical pod

Electro-optical pod’s main functions are as follows.

1. Scan the frequency band and search the signal according to the threshold and frequency;

2. Spectrum monitoring;

3. Measurement of communication parameters such as fixed frequency and frequency hopping;

4. communication signal identification and demodulation;

5. Communication signal DF and emitter location function;

6. Self-check and calibration;

7. Signal parameters, I/Q data and other output functions;

8. Remote control, waveform display, analysis and playback functions.

Performance indicators:

1) Operating frequency range: 20MHz ~ 600MHz;

2) Receiving sensitivity: Better than -85dBm (bandwidth 40MHz); Better than -100 dBm (bandwidth 1MHz);

3) Maximum bandwidth: 40 MHz;

4) Instantaneous dynamic range: 80dB;

5) Signal identification:CW, AM, SSB (USB/LSB), FM, FSK, BPSK, GPSK, 8PSK, 4QAM, 16QAM.
