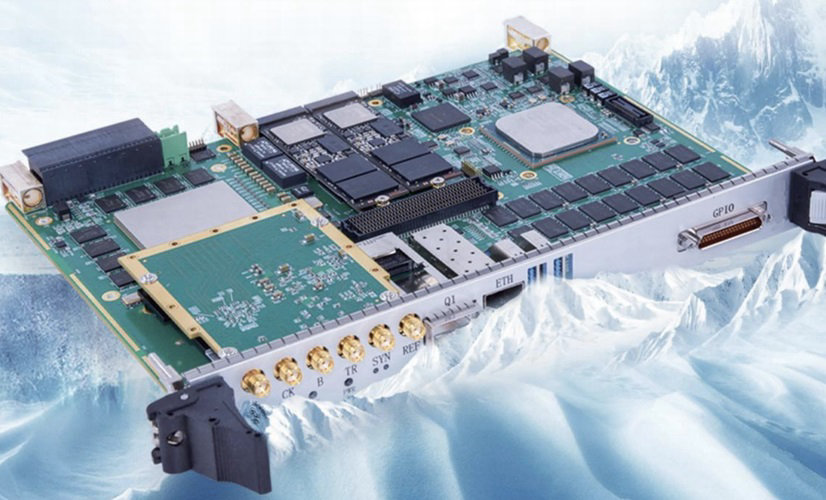

Signal processing system V1000

The V1000 integrates powerful and easy-to-use monitoring and processing software, which can realize system-level applications of ultra-high performance arbitrary waveform generation, analog data acquisition, real-time analysis and processing, and continuous data storage with only one device. Based on Xeon D-1500 series processor and Xlinx FPGA.

The V1000 has high-speed and large-capacity solid-state storage on board, with native 10 Gigabit network interface, USB3.0 interface, 40 G high-speed optical fiber interface and expandable FMC interface. Pre-installed Win7 or Linux system, matched with self-developed driver and underlying application software, can be directly embedded into the user's existing platform to meet the user's rapid construction. The need for a high performance radio verification system.

Technical Specifications:

12bit ADC, 2-channel 5G sampling rate or 1-channel 10G sampling, 8GHz analog bandwidth, expandable to 16-channel synchronous acquisition, 6U VPX.

16bit DAC,1-channel 12G sampling, 6GHz analog bandwidth, 6U VPX.
